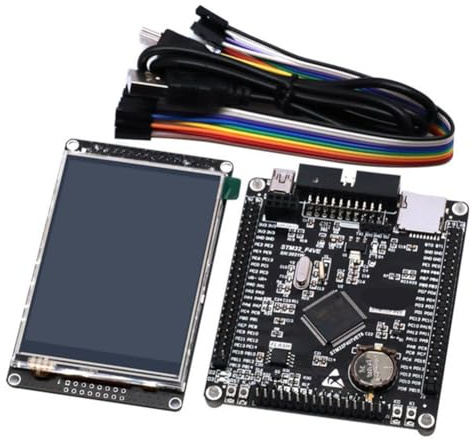

Orolotay STM32F407VET6 Development Board - STM32 Minimum System Learning Board ARM Core Board +3.2 Inch LCD TFT Screen

Product description

• Onboard:SD card slot. RTC Battery:CR1220. Wireless Communication:NRF2401 Interface. Data storage:W25Q16. Support FMSC LCD Interface. Multi-user keys. All the CPU-10 lead. 2.54mm integer multiples spacing pin. STM32F407VET6:the high performance STM32 MCU which. Core: - 32-bit RISC. Feature:a full set of single-cycle instructions. Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz. Operating Voltage: 1.8V-3.6V. Package: LQFP100. Storage Resources: 512kB Flash, 192+4kB
• Output: 720 source outputs, 320 gate outputs. Common electrode output (). a-TFT LCD driver with on-chip full display RAM: 172
• 800 bytes.
• Resource: 3 x SPI, 3 x USART, 2 x UART, 2 x I2S, 3 x ; 1 x FSMC, 1 x SDIO, 2 x CAN; 1 x USB 2.0 / Controler(with DMA); 1 x USB ULPI; (used for external USB PHY)1 x 10/100 Ethernet ; 1 x 8 to 12-bit parallel camera interface; 3 x AD(12 bit
• 1us), 2 x DA(12 bit)
• Display type:TFT 3.2. Driver IC:ILI9341. Operating Temp.:-20°C-70°C. Storage Tem.:-30°C-80°C. General Tolerance: plusmn0.2. Display resolution: [240xRGB](H) x 320(V)
• Due to different product batches, the appearance , which does not affect the use.
