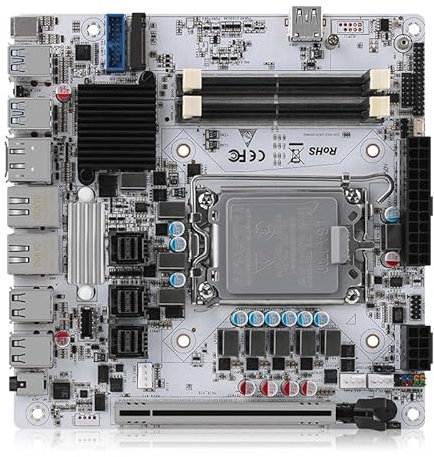

Q670 NAS Motherboard ITX Firewall Mainboard for 12/13/14th Gen LGA1700 2*DDR5 2 * 2.5G LAN 1*PCIE5.0x16 Max 8*SATA 6*M.2 NVMe 2X Intel 2.5G Network Port

Product description

• LGA1700 Socket White Q670 8-Bay NAS board is compatible with Intel Core i3 i5 i7 12th 13th 14th Gen. desktop processors, and we recommend the T-Series desktop processors, which are more energy efficient. It's 6.7" x 6.7" mini-ITX form factor, basic TDP is 65W, and it supports Windows 10 11, Linux
• i226-LM Port This upgrade version Q670 NAS motherboard has 1* i226 2.5GbE port and 1* i226-LM 2.5GbE port. i226-LM port supports vPro function, but it requires the processor is integrated graphics and setting in BIOS. The vPro is essential for remotely repairing a malfunctioning computer that is unable to access the system
• High Productivity 1* Type-C (USB3.2 Gen2 x2 20Gbps, Supports data transfer only), 4* USB3.2 Gen2 10Gbps, Expandable to 8* SATA via 2* SFF-8643 cable, stable and ultra-fast transfer speed. 2* DDR5 SO-DIMM RAM(for 12th Gen. CPU, it supports 4800MHz by default; for 13th Gen. CPU and above, it supports 5600MHz by default), MAX 48GB, 2* M.2 NVMe (PCIe4.0 x4) 2280 size on back and 1* M.2 NVMe (PCIe4.0 x4) 2280 22110 size on front.
• Dual 4K Display This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz, and it has PCIe5.0 x16 slot which can be expanded to graphics cards, PCI-E network cards, support for various types of PCI-E protocol expansion accessories and also supports splitting into 2 x8 signals via jumper caps.
• Heat Dissipation It is compatible with LGA115x or LGA1700 series processors cooling fan
• NOTE The motherboard requires both 24PIN + 8PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing "DEL" while booting up. For user manual, please leave a msg to the seller.
