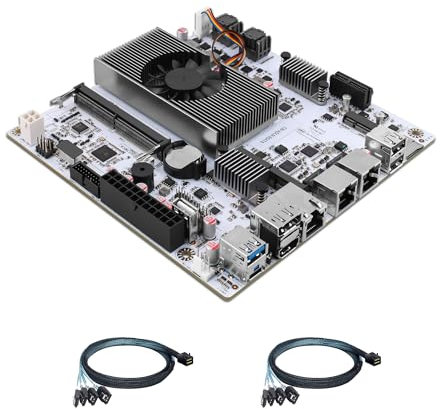

CWWK NAS Motherboard 8 Bay with 10GbE RJ45, N150 CPU Mini ITX PC Mainboard White M8, 2 x NVMe, Dual 2.5GbE LAN, M.2 WiFi, USB-C, 32GB RAM 1TB SSD, PCIe x1, TF (2x 4-SATA Cable)

Product description

• 2025 New Gen. N150 Processer The CWWK CWWK M8 Motherboard features the new model Twin Lake N150 CPU (upgrade of the Alder Lake N100), 4C 4T, up to 3.6GHz, 6MB cache. With an ultra-low TDP of just 6W, it s perfect for energy-efficient systems. Supporting Auto Power-On, Scheduled Power-On, Wake-on-LAN, PXE Boot, Secure Boot, CPU Temperature Monitoring. Only UEFI Supported
• 10GbE + Dual 2.5GbE RJ45 LAN Features 1 AQC113C 10 Gbit RJ45 port, providing higher speed data transfer for demanding applications. And equipped with 2 i226-V 2.5GbE Ethernet controllers, it is compatible with various open-source NAS systems (like TrueNAS or unraid), WinOS, Linux systems or PVE virtualization systems, suited for building VMs or NVMe-RAID and 24 7 continuous operation
• 8-Bay SATA 3.0 + 2 NVMe Equipped with 2 SFF-8643 ports, which can be converted into 8 SATA 3.0 ports using two SFF-8643 to 4-SATA adapter cables. Includes 2 M.2 NVMe slots, supporting 2280-sized NVMe SSDs. Features 1 DDR5 4800MHz SO-DIMM RAM slot, supporting up to 48GB memory modules
• Various I O Interfaces The processor comes with integrated UHD Graphics (1GHz, 24EU), supports hardware decoding and 4K video output. Equipped with HD2.0 + DP1.4 ports, it supports dual screen display up to 4K@60Hz. 1 x USB Type-C (10Gbps), 1 x USB3.2-A 10Gbps and 2 x USB2.0 for data transfer or USB peripherals. Internally, 1 TF slot for MicroSD card, used for system boot
• Other Specifications This Mini-ITX motherboard (17 17 cm) requires 24-pin + 4-pin power input. It features 1 M.2 E-Key slot (PCIe CNVi) for WiFi BT modules and 1 PCIE x1 slot (PCIe 3.0, side-notched, x4 x8 compatible; shares lanes with E-Key). Includes USB 3.0 and Type-E headers for front I O connecting. I O shield Included. PDF manual offered
