dissot Malachite SDR 1.10d Radio Receiver V5 with Firmware Board Metal Case 5000mAh AM CW SSB NFM WFM

Multiple Analog Modulation This malachite receiver supports multiple types of analog modulation AM, SSB, NFM, WFM.

Easy to Use Malachite SDR receiver comes with a standard SMA female gold-plated connector, 50 ohm, and high resistance input mode automatic switching. It also has a 3.5mm headphone jack for stereo audio output, a standby button, and a charging indicator.

With variable filter width, adaptive noise suppressor, threshold noise suppressor and other functions.

Multi-function SSB&RDS Radio with Automatic Search and Storage of Radio Stations With excellent and beautiful sound quality as the selling point, you can enjoy a comfortable radio time, whether it is FM or MW, or SW LW AIR bands, they can be automatically scanned and stored, each band can store up to 100 radio stations, and can be deleted at any time. There are also alarm and sleep timer functions, and the alarm can be selected as a radio or buzzer. Time display will also be a very helpful function (including manual calibration and RDS automatic calibration)

High Performance This DSP SDR receiver is based on SDR architecture, msi001 RF front end for 12 bit quantitative sampling, using stm32h743 processor with main frequency up to 480mhz.

5. Sensitivity - s w of 0.3 at up to 250MHz V 10dB. Due to the characteristics of msi001 chip, the dynamic blocking range is about 85dB.

for DURABLE and High Performance Made of for DURABLE materials with a 4-layer board structure, this 10D 50kHz-2GHz Receiver HAM for DSP offers higher performance for excellent functionality.

Processor Core-The processor uses STM32H743 with a main frequency of 480MHz and supports UHF UHF frequency bands

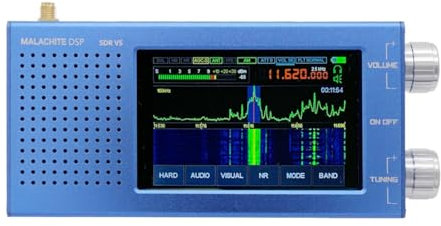

Display and Control The receiver adopts a 3.5 inch IPS touch display screen with button, which has high sensitivity and is clear and intuitive. Built in UHF, controlled by 2 encoders, efficient and practical.

WIDE COVERAGE Radio Receiver Module is designed to have 10KHz 2GHz receiving frequency,12 bit ADC and 10MHz real time bandwidth for wide coverage.

The sound quality of the speaker comes with a bass diaphragm, the bass is thick, the treble is clear, and the sound quality is acceptable for comparison.

Speaker Function Increase the maximum power amplifier of the speaker by 3W, can be switched with headphone, paired with the speaker you need to achieve external function.

The motherboard adopts a well-designed four-layer immersion gold motherboard with ultra-low noise.

ADVANCED DSP AND PLL TECHNIQUE FM Receiver Control Module has advanced digital audio signal processing (DSP) and FM phase-locked loop modulation technique (PLL) ensure less sound distortion and more stable performance.

Touch Screen DSP SDR receiver is IPS 3.5 inch display with backlight adjustment capacitive touch screen. Variable filter, adaptive noise reduction, threshold noise reduction, noise suppressor, AGC, etc.

Processor Core The processor uses STM32H743 with a main frequency of 480MHz and supports UHF UHF frequency bands

One-piece CNC aluminum alloy knob, using EC11 encoder, the paragraph is crisp and easy to operate.

Komdndht

Software-defined radio receiver The Malachite 10d Radio Receiver V5 is a software-defined radio receiver that allows for different communication functions by loading different software. It is based on a common hardware platform and can cover a frequency range of 10kHz to 250MHz, as well as 400MHz to 2GHz.
