LattePanda Mu-Micro x86 Compute Module Evaluation Kit with Intel N100 Processor Up to 3.4GHz, 8GB LPDDR5 RAM, 64GB eMMC, 4K Triple Display/USB 3.2/PCIe 3.0/SATA 3.0 for Prototype Design

Product description

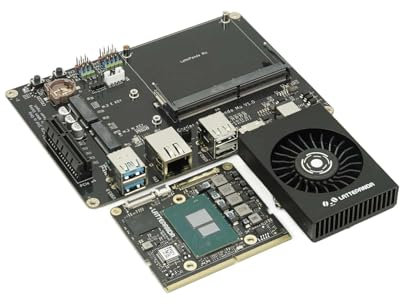

• Comprehensive x86 Compute Module Development Kit This Kit includes the LattePanda Mu Compute Module, Lite Carrier Board, and Active Cooler. Please note that this kit doesn't include the RTC battery(CR1220). This x86 compute module is designed for hardware developers, suitable for evaluating common interfaces such as USB, HDMI, PCIe, UART, and can be used for solution evaluation, prototype design, and more.
• Intel N100 Quad-Core Processor up to 3.4GHz+Adjustable TDP (6W to 35W) LattePanda Mu features Intel N100 quad-core processor with 3.4GHz turbo frequency, offering ample performance and multitasking capabilities for the majority of applications. The TDP can be adjusted from 6W to 35W, providing flexibility in power usage and heat output. The 6W setting enables efficient operation with minimal heat and silent passive cooling, while the 35W setting offers robust performance but requires active cooling.
• 8GB LPDDR5 RAM+64GB eMMC This x86 compute module measures just 69.6 x 60mm and is equipped with LPDDR5 4800MT s 8GB with IBECC supported and eMMC 5.1 64GB for smooth multitasking and fast storage in a compact form factor.
• Support Windows 10&11 and Linux OS This N100 compute module supports multiple operating systems, including Windows 10, Windows 11, Ubuntu, ensuring that there is always one that suits your needs.
• Up to 9*PCIe 3.0 lanes, 2*SATA 3.0 and 4*USB 3.2 LattePanda Mu x86 compute module exposes extensive pins, such as 3 HDMI DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 and 64 expandable GPIOs. This offers unparalleled flexibility and expandability, allowing you to create the specific solution.
