IPCamPower POE Powered 3 Port Switch & Network Cat5 Cat6 Midspan Cable Range Extender Pass Through Repeater for IP Cameras - Run Cables up to 1148'

Product description

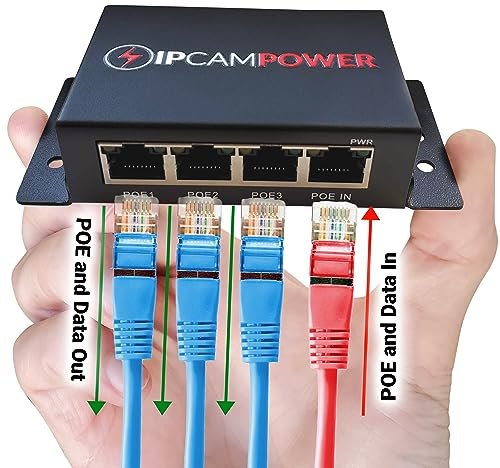

• POE POWERED 3 PORT 10 100 UNMANAGED POE SWITCH - This unique switch is powered by incoming POE power from your POE switch or POE injector. It has 1 POE input that passes POE and Data through to the 3 POE Outputs. Since it does not require traditional AC power, this gives the user the ability to install this POE switch anywhere without the need for a nearby power receptacle.
• LOW PROFILE AND WALL MOUNTABLE - The unit is small and unassuming and can be conventiently installed on a flat surface or be wall mounted using the included wall mount ears. Size is only 8.25cm Wide (11.35cm Wide with mounts installed) x 5.5cm High x 2.4cm Deep
• OPTIONAL "VLAN" AND "EXTEND" MODE - There are 2 optional modes that can be activated by a dip switch on the unit. VLAN MODE This isolates the 3 output ports from communicating and sending data to each other and each of these ports will only be able to communicate with the POE Input uplink port.
• POWERED BY INCOMING POE - This switch operates best with 30 watts of incoming POE, but can function at reduced capacity with lower wattage. It uses 5W for itself and channels remaining power to the 3 outputs. Compatible with standard POE types (802.3af at bt), utilizing max 30W. Output wattage budget is 25W total, shared across 3 ports (up to 25W per port).
