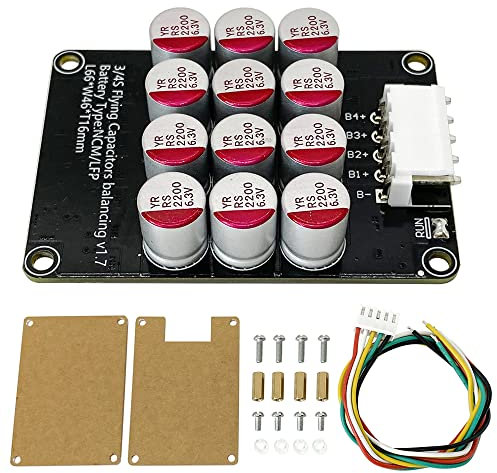

5A 3S 4S 12V Battery Active Equalizer Whole Group Balancer LiFePO4 LFP Lipo Li-ion Lithium Active Battery Energy Transfer Equalization Capacitor Balancer PCB Module with Acrylic Protective Case

Product description

• Working Voltage 2.7V-4.2V, suitable for NCM Ternary polymer lithium battery (Li-ion), lithium iron phosphate battery (LiFePO4). It can Not fit LTO battery. If it is used for 3S, the last line B4+ is empty. (Note The default protective case is a kit, not assembled, the transparent acrylic case has a yellow protective film that can be peeled off. )
• Working Principle Flying capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB, balance current 0-5.5A, the more balanced the battery current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!
• Attention Before connect the balance cable to the balance board, be sure to check whether the connections of each section of the battery pack are correct, and do a good job of insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board.
